Linear and Rotary Ball Bearings
16 Products

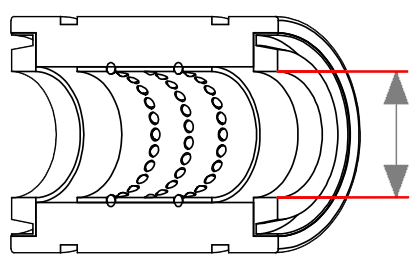

Linear and Rotary Ball Bearings
Engineered for simultaneous linear and rotary motion, these bearings are used with round end-supported shafts.
Part Number
Bore Dia
Outer Dia
Overall
Length
Length
Retaining Ring Groove
End-to End Lg.
End-to End Lg.
With End
Seals
Seals
Dynamic Radial
Load
Load
Temperature
Range
Range
6485K11
0.375"
5/8"
7/8"
0.64"
Yes
70 lbs
- to 200° F
6485K12
0.5"
7/8"
1 1/4"
0.967"
Yes
185 lbs
- to 200° F
6485K31
0.625"
1 1/8"
1 1/2"
1.112"
Yes
280 lbs
- to 200° F
6485K14
0.75"
1 1/4"
1 5/8"
1.174"
Yes
325 lbs
- to 200° F
6485K15
1"
1 9/16"
2 1/4"
1.761"
Yes
450 lbs
- to 200° F
6485K19
1.25"
2"
2 5/8"
2.011"
Yes
600 lbs
- to 200° F
6485K17
1.5"
2 3/8"
3"
2.422"
Yes
935 lbs
- to 200° F
6485K2
2"
3"
4"
3.206"
Yes
1300 lbs
- to 200° F
6485K21
2.5"
3 3/4"
5"
3.99"
No
1800 lbs
- to 200° F
6485K23
8 mm
15 mm
24 mm
15.3mm
Yes
75 lbs
- to 200° F
6485K24
10 mm
19 mm
30 mm
18.5mm
Yes
140 lbs
- to 200° F
6485K25
12 mm
23 mm
32 mm
20.1mm
Yes
240 lbs
- to 200° F
6485K26
16 mm
28 mm
37 mm
24.1mm
Yes
265 lbs
- to 200° F
6485K27
20 mm
32 mm
45 mm
30.8mm
Yes
280 lbs
- to 200° F
6485K28
30 mm
45 mm
65 mm
50.1mm
Yes
670 lbs
- to 200° F
6485K3
40 mm
60 mm
80 mm
64.9mm
Yes
925 lbs
- to 200° F
