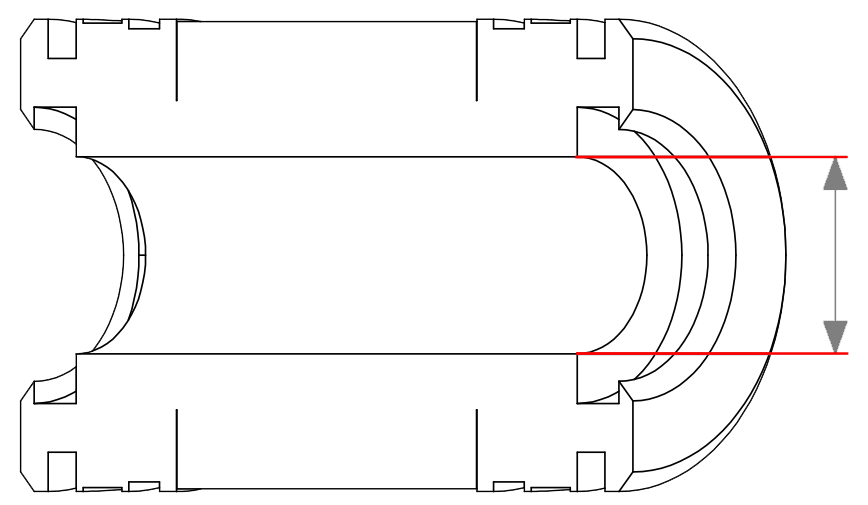

Bore Dia
Outer Dia
Overall Length
Bearing Type
Alignment Style
Dynamic Radial Load
Static Radial Load
Temperature Range
High-Load Linear Ball Bearings
23 Products
High-Load Linear Ball Bearings
Designed to handle heavy loads, these bearings have higher load capacities than comparable standard linear ball bearings.
Part Number
Bore Dia
Outer Dia
Overall
Length
Length
Retaining Ring Groove
End-to End Lg.
End-to End Lg.
With End
Seals
Seals
Dynamic Radial
Load
Load
Static Radial
Load
Load
Temperature
Range
Range
GEIJKHB
0.188"
3/8"
9/16"
-
No
35 lbs
-
- to 176° F
GEIJKGB
0.25"
1/2"
3/4"
0.511"
No
60 lbs
-
- to 176° F
GEIJKGC
0.375"
5/8"
7/8"
0.699"
No
100 lbs
-
- to 176° F
GEIJKF
0.5"
7/8"
1 1/4"
1.032"
Yes
265 lbs
-
- to 176° F
JAGJTB
0.5"
7/8"
1 1/4"
1.032"
Yes
260 lbs
200 lbs
- to 176° F
GEIJKFB
0.625"
1 1/8"
1 1/2"
1 1/8"
Yes
620 lbs
-
- to 176° F
GEIJKFC
0.75"
1 1/4"
1 5/8"
1.285"
Yes
1100 lbs
-
- to 176° F
GEIJKFD
1"
1 9/16"
2 1/4"
1.901"
Yes
1900 lbs
-
- to 176° F
GEIJKFE
1.25"
2"
2 5/8"
2.031"
Yes
2300 lbs
-
- to 176° F
GEIJKFF
1.5"
2 3/8"
3"
2.442"
Yes
3800 lbs
-
- to 176° F
GEIJKGI
2"
3"
4"
3.206"
Yes
3500 lbs
2700 lbs
- to 176° F
DHFINBC
5 mm
12 mm
22 mm
14.2 mm
No
25 lbs
-
- to 176° F
DHFINBD
8 mm
16 mm
25 mm
16.2 mm
No
45 lbs
-
- to 176° F
GCDCKDB
8 mm
16 mm
25 mm
16.2 mm
No
70 lbs
-
- to 176° F
GCDCKDC
12 mm
22 mm
32 mm
22.6 mm
No
200 lbs
-
- to 176° F
GCDCKDD
16 mm
26 mm
36 mm
24.6 mm
Yes
495 lbs
-
- to 176° F
DHFINCC
20 mm
32 mm
42 mm
30.5 mm
No
630 lbs
-
- to 176° F
GCDCKFC
20 mm
32 mm
45 mm
31.6 mm
Yes
895 lbs
-
- to 176° F
DHFINBH
25 mm
40 mm
58 mm
44.1 mm
No
1050 lbs
-
- to 176° F
GCDCKDE
25 mm
40 mm
58 mm
43.7 mm
Yes
1500 lbs
-
- to 176° F
DHFINBI
30 mm
47 mm
68 mm
52.2 mm
No
1300 lbs
-
- to 176° F
GCDCKDF
30 mm
47 mm
68 mm
51.7 mm
Yes
1800 lbs
-
- to 176° F
GCDCKDG
40 mm
62 mm
80 mm
60.3 mm
Yes
3000 lbs
-
- to 176° F
