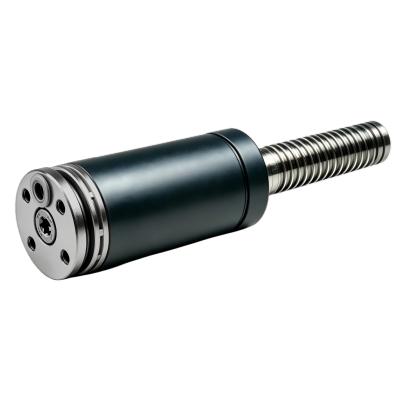

XMS 1000-075
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | XMS 1000-075 |
Brand: LILY  |
Interchangeable With: KALLER |
| System of Measurement | Inch |
| Minimum Length | 4.45" |
| Stroke Length | 2.95" |
| Total Length | 7.4" |
| End Force At Full Stroke | 3305 lbf |
| Force Increase By Temperature Percent Per | 0.17 °F |
| Gas Volume | 0.004590907 cuf |
| Initial Force at max. pressure | 2068 lbf |
| Max Charging Pressure | 2175 psi |
| Max Piston Rod Velocity | 314.96 ft/min |
| Max. Operating Temperature | 176 F |
| Min Charging Pressure | 362 psi |
| Min. Operating Temperature | 32 F |
| Recommended Max Strokes Per Minute | ~50-100 |
| Weight | 2.178 lb |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of XMS 1000-075 Spring
XMS 1000-075 Spring are designed for medium-to-high force applications requiring precise motion and adjustable stroke control. The XMS series features a sealed, factory-charged nitrogen system that provides consistent force while minimizing external connections. A guided, hardened piston rod ensures smooth operation and high side-load resistance, while the robust body supports repeated high-cycle use. The integrated stroke adjustment mechanism allows fine-tuning for specific tooling requirements, and corrosion-resistant surfaces and durable materials provide reliable long-term performance with low maintenance in stamping, forming, and assembly operations.
What Benefits Can XMS 1000-075 Spring Provide?
- Adjustable stroke – Allows precise tuning for specific tooling needs.
- Consistent force – Sealed nitrogen system ensures reliable performance over the entire stroke.
- Smooth operation – Guided piston rod reduces friction and vibration.
- High side-load resistance – Maintains stability under lateral forces.
- Durable construction – Robust body and corrosion-resistant materials extend service life.
- Versatile application – Suitable for a range of medium-to-high force stamping, forming, and assembly tasks.
- Low maintenance – Pre-charged, sealed design reduces servicing requirements.
What Can XMS 1000-075 Spring Be Used for?
- Adjustable-force stamping tools – Ideal for operations requiring fine-tuned pressure control.
- Forming and bending dies – Provides stable force with customizable stroke for different part geometries.
- Assembly and insertion operations – Supports precise part positioning and controlled movement.
- Medium-to-high load production tools – Suitable for dies and presses with varying force requirements.
- Prototype and specialized tooling – Allows testing and adjustment of stroke lengths and force levels.
- High-cycle precision operations – Maintains consistent performance in repetitive processes.
