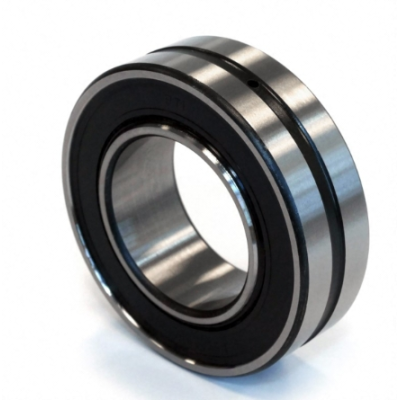

WS22311-E1-XL-K-2RSR

Part Number	WS22311-E1-XL-K-2RSR
System of Measurement	Metric
Bore Dia	55 mm
Outer Dia	120 mm
Width	49 mm
Basic dynamic load rating, radial	265,000 N
Basic static load rating, radial	260,000 N
Fatigue load limit, radial	24,600 N
Limiting speed	1,460 1/min
weight	2.9 kg
Minimum diameter shaft shoulder	64.8 mm
Maximum diameter of shaft shoulder	64.8 mm
Maximum diameter of housing shoulder	109 mm
Maximum recess radius	2 mm
Minimum cavity diameter of the sleeve	61 mm
Minimum cavity width of the sleeve	6 mm
Minimum chamfer dimension	2 mm
Bore diameter outer ring	104.1 mm
Raceway diameter of the inner ring	64.8 mm
Diameter lubrication hole	3.2 mm
Width of lubricating groove	6.5 mm
Operating temperature min.	-30 u00B0C
Operating temperature max.	100 u00B0C
Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y	0.36
Dynamic axial load factor	2.81
Static axial load factor	1.84
Adapter sleeve	H3311-T
System Of Measurement	Metric
