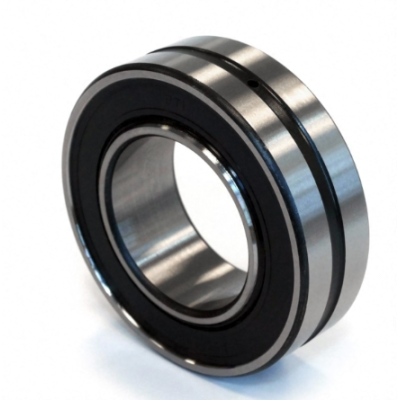

WS22212-E1-XL-K-2RSR
| Part Number | WS22212-E1-XL-K-2RSR |
| System of Measurement | Metric |
| Bore Dia | 60 mm |
| Outer Dia | 110 mm |
| Width | 34 mm |
| Basic dynamic load rating, radial | 160,000 N |
| Basic static load rating, radial | 155,000 N |
| Fatigue load limit, radial | 20,700 N |
| Limiting speed | 2,030 1/min |
| weight | 1.23 kg |
| Minimum diameter shaft shoulder | 67.6 mm |
| Maximum diameter of shaft shoulder | 67.6 mm |
| Maximum diameter of housing shoulder | 101 mm |
| Maximum recess radius | 1.5 mm |
| Minimum cavity diameter of the sleeve | 65 mm |
| Minimum cavity width of the sleeve | 8 mm |
| Minimum chamfer dimension | 1.5 mm |
| Bore diameter outer ring | 100.7 mm |
| Raceway diameter of the inner ring | 67.6 mm |
| Diameter lubrication hole | 3.2 mm |
| Width of lubricating groove | 6.5 mm |
| Operating temperature min. | -30 u00B0C |
| Operating temperature max. | 100 u00B0C |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.23 |
| Dynamic axial load factor | 4.44 |
| Static axial load factor | 2.92 |
| Adapter sleeve | H312-T |
| System Of Measurement | Metric |
