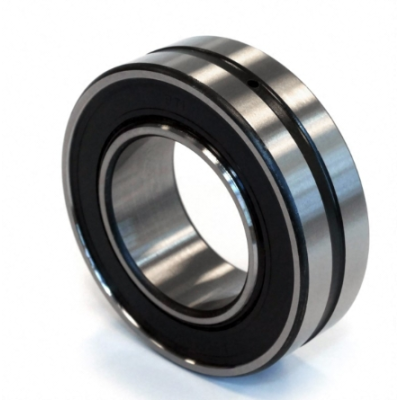

WS22209-E1-XL-2RSR
| Part Number | WS22209-E1-XL-2RSR |
| System of Measurement | Metric |
| Bore Dia | 45 mm |
| Outer Dia | 85 mm |
| Width | 28 mm |
| Basic dynamic load rating, radial | 104,000 N |
| Basic static load rating, radial | 99,000 N |
| Fatigue load limit, radial | 13,000 N |
| Limiting speed | 2,550 1/min |
| weight | 0.645 kg |
| Minimum diameter shaft shoulder | 51.4 mm |
| Maximum diameter of housing shoulder | 78 mm |
| Maximum recess radius | 1 mm |
| Minimum chamfer dimension | 1.1 mm |
| Bore diameter outer ring | 77.8 mm |
| Raceway diameter of the inner ring | 51.4 mm |
| Diameter lubrication hole | 3.2 mm |
| Width of lubricating groove | 4.8 mm |
| Operating temperature min. | -30 u00B0C |
| Operating temperature max. | 100 u00B0C |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.25 |
| Dynamic axial load factor | 4.08 |
| Static axial load factor | 2.68 |
| System Of Measurement | Metric |
