UCC205
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | UCC205 |
Brand: LILY  |
Interchangeable With: AMI |
| Housing Part Number | C205 |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Cartridge Bearing Units |
| Shaft Mount Type | Set Screw Locking |
| Product Series | UCC200 |
| Lubrication Fitting Tap | 1/4-28 UNF |
Dimensions |
|
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bearing Width | 34 mm |
| Housing Height | 22 mm |
| Whole Length | 80 mm |
Material |
|
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
Performance |
|
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.66 kg |

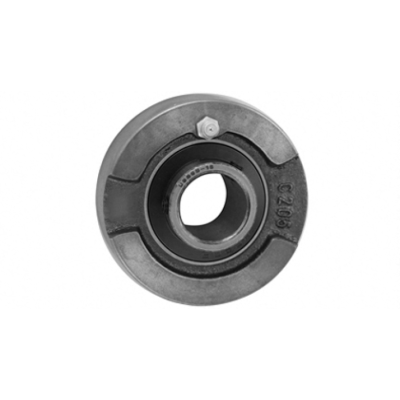

Design Features of UCC205
UCC205 are designed with a cylindrical or rectangular housing that encloses a precision bearing insert, allowing the unit to slide into a machined bore for accurate shaft support. The housing provides uniform load distribution and excellent concentricity, making these cartridge bearing units well-suited for applications requiring precise alignment. Sealed bearing inserts and robust housing materials enhance contamination resistance, operational stability, and service life in demanding industrial environments.
What Benefits Can UCC205 Provide?
- High Alignment Accuracy: The cartridge-style housing fits precisely into a machined bore, ensuring excellent concentricity and stable shaft alignment.
- Compact and Integrated Design: The enclosed structure saves space while combining bearing and housing into a single, easy-to-handle unit.
- High Load Distribution Capability: Uniform load transfer through the housing reduces localized stress and enhances bearing performance under continuous operation.
- Enhanced Protection and Reliability: Sealed bearing inserts protect against dust, moisture, and contaminants, extending service life in harsh environments.
- Simplified Installation and Maintenance: Cartridge units can be quickly installed or replaced without complex alignment procedures, reducing downtime and maintenance costs.
What Can UCC205 Be Used for?
- Heavy-Duty Conveyor Systems: They provide stable shaft support in conveyor rollers and pulleys, especially where precise alignment is required.
- Material Handling and Bulk Processing Equipment: Widely used in crushers, feeders, and screening machines operating under continuous or high-load conditions.
- Mining and Quarry Machinery: Applied in harsh environments where robust housings and effective sealing are critical for reliable performance.
- Steel, Cement, and Power Plants: Used in industrial equipment requiring high load capacity, long service life, and easy replacement.
- General Industrial Machinery: Suitable for gearboxes, rotating assemblies, and large mechanical systems where accurate shaft positioning and durability are essential.
