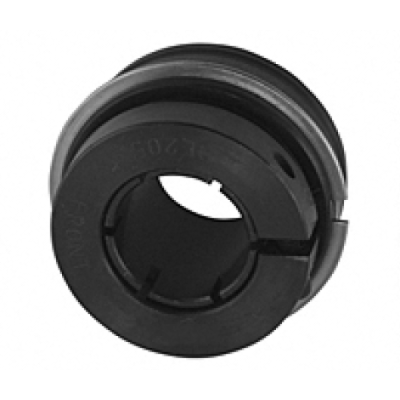

SUE210-31
Price $ 23.94
| Part Number | SUE210-31 |
Brand: LILY  | |
Equivalent: AMI |
| System of Measurement | Inch |
| Product Series | SUE200 |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Bore Dia | 1 15/16" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Overall Height | 3.189" |
| Bearings Material | AISI 52100 Steel |
| Dynamic Load Rating | 7940 lbf |
| Static Load Rating | 5220 lbf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2.87 lb |
| an | 1/8" |
| Be | 1 1/8" |
| D | 3.5433" |
| ds | 1/4 20" |
| k | 0.571" |
| L | 2.071" |
| M | 1 9/32" |
| n | 3/4" |
| o | 19/64" |
| r | 0.079" |
| t | 0.095" |
| Y Max | 3.799" |
| Description | Accu-Loc® Concentric Collar Locking_x000D_| Normal Duty_x000D_| Wide Inner Ring_x000D_| Steel Retain |
