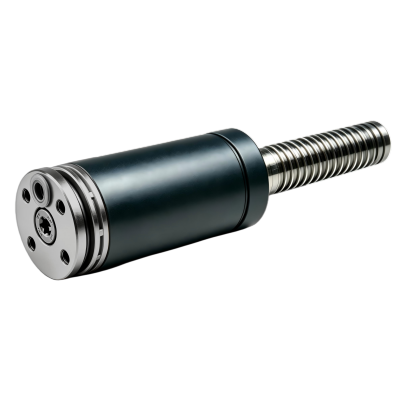

SPC 3000-300
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | SPC 3000-300 |
Brand: LILY  |
Interchangeable With: KALLER |
| System of Measurement | Inch |
| Minimum Length | 17.32" |
| Stroke Length | 11.81" |
| Total Length | 29.13" |
| Dampening Speed | 78.74 ftmin |
| End Force At Full Stroke | 8775 lbf |
| Force Increase By Temperature Percent Per | 0.17 °F |
| Gas Volume | 0.089346107 cuf |
| Initial Force at max. pressure | 6750 lbf |
| Max Charging Pressure | 2175 psi |
| Max Piston Rod Velocity | 314.96 ft/min |
| Max. Operating Temperature | 176 F |
| Min Charging Pressure | 362 psi |
| Min. Operating Temperature | 32 F |
| Recommended Max Strokes Per Minute | See separate file in Documents -> Brochures |
| Weight | 30.69 lb |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of SPC 3000-300 Spring
SPC 3000-300 Spring are designed for applications with extremely limited installation space, offering high force output in a compact, short-stroke design. Featuring high-pressure nitrogen operation, a robust one-piece steel cylinder, and a precision-guided piston rod, they deliver smooth, consistent, and repeatable motion even under high-cycle conditions. Advanced sealing ensures minimal gas leakage and long service life, while the optimized design makes SPC springs ideal for rapid, continuous operation in stamping, forming, and other high-performance die applications.
What Benefits Can SPC 3000-300 Spring Provide?
- Deliver high force output despite a compact, short-stroke design
- Provide consistent and repeatable force throughout the stroke
- Ensure smooth, precise motion with a precision-guided piston rod
- Minimize gas leakage and maintenance through advanced sealing
- Withstand high-cycle and high-load applications with long service life
- Enable efficient operation in space-constrained tooling and dies
- Improve productivity and part quality in stamping, forming, and high-speed operations
What Can SPC 3000-300 Spring Be Used for?
- Used in stamping and forming dies where installation space is limited
- Applied in short-stroke operations requiring high force in a compact design
- Integrated into progressive and transfer dies for lifting, cushioning, or stripping
- Employed in pad systems, die cushions, and blank holders to improve forming quality
- Replace conventional coil springs in press tools for space-efficient solutions
- Suitable for high-cycle production environments demanding reliability and precision
- Used in automation and compact tooling systems where repeatable, high-force motion is critical
