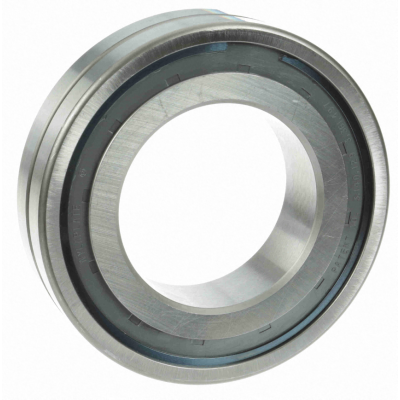

SB 22219 W33 SS
Price $ 277.42
Number
Part Number | SB 22219 W33 SS |
Brand: LILY | |
Equivalent: McGill |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Spherical |
Bore Type | Cylindrical |
For Load Direction | Combined |
Construction | Single Row |
Seal Type | Double Seal |
Bore Dia | 95 mm |
Outer Dia | 170 mm |
Width | 43 mm |
Shaft Shoulder Diameter | 106.4 mm |
Housing Shoulder Diameter | 181 mm |
Width Of Lubrication Groove | 8.3 mm |
Angular Misalignment | 2° |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Steel |
Dynamic Radial Load | 71399 lbf |
Max Speed (X1000 rpm) | 2.65 |
Lubrication | Lubrication Groove & Hole |
Temperature Range | -30° to 150 °C |
Radial Clearance | C0 |
Mounting Method | Shaft Mount |
RoHs | Compliant |
REACH | Compliant |
Weight | 9.20 lb |
