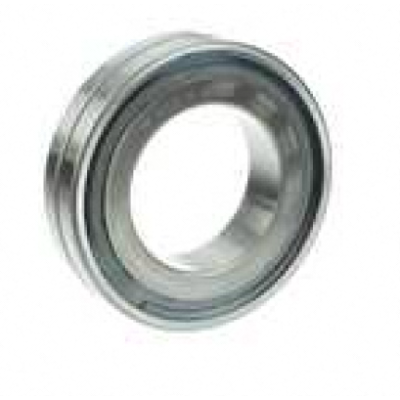

SB 22216K C3 W33 SS
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | SB 22216K C3 W33 SS |
Brand: LILY  |
Interchangeable With: McGill |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Spherical |
| Bore Type | Taper 1:12 |
| Seal Type | Double Sealed |
| For Load Direction | Combined |
| Construction | Single Row |
| Mounting Method | Shaft Mount |
Dimensions |
|
| Bore Dia | 80 mm |
| Outer Dia | 140 mm |
| Width | 33 mm |
| Shaft Shoulder Diameter | 90.5 mm |
| Housing Shoulder Diameter | 135 mm |
| Width Of Lubrication Groove | 5.6 mm |
| Radial Clearance | C3 |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
Performance |
|
| Angular Misalignment | 2 ° |
| Dynamic Radial Load | 190 kN |
| Max Speed (X1000 rpm) | 3.25 |
| Temperature Range | -30° to 150 °C |
Properties |
|
| Lubrication | Lubrication Groove & Hole |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 4.6 lb |
Design Features of SB 22216K C3 W33 SS Bearing
SB 22216K C3 W33 SS Bearing is designed with spherical rollers and optimized contact geometry, allowing it to handle high radial and moderate axial loads while accommodating misalignment. SB 22216K C3 W33 SS outer dia is 140 mm. Its bore dia is 80 mm. This bearing features durable materials and an improved cage design, making it ideal for heavy-duty applications where reliability and longevity are essential.
What Benefits Can SB 22216K C3 W33 SS Bearing Provide?
- High Load Capacity: It supports high radial loads and moderate axial loads, making it ideal for heavy-duty applications.
- Self-Alignment: The spherical design allows for automatic alignment adjustments, compensating for shaft misalignment and reducing stress on the bearing.
- Durability: Made with high-quality materials and advanced heat treatments, it is resistant to wear and corrosion, extending its service life.
- Reduced Maintenance: With efficient lubrication options and a robust design, it requires minimal maintenance, reducing operational downtime.
- Smooth Operation: The optimized contact geometry minimizes friction, reducing noise, vibration, and heat generation for smoother performance.
What Can SB 22216K C3 W33 SS Bearing Be Used for?
- Heavy Machinery: Ideal for construction and mining equipment, where high load capacity and self-alignment are essential to handle tough conditions.
- Material Handling Equipment: Used in conveyor systems, cranes, and hoists to support heavy loads while accommodating shaft misalignment.
- Agricultural Equipment: Suited for tractors and harvesters, where durability and resistance to contaminants are necessary.
- Electric Motors and Generators: Ensures smooth operation and longevity in motors that experience radial loads and some misalignment.
- Pulp and Paper Industry: Commonly used in paper mill rollers, as it handles heavy loads, misalignment, and high speeds well.
