S6916zz

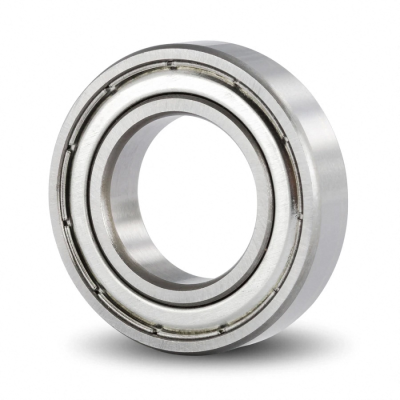

S6916zz Thin Section Ball Bearings
Price $ 31.63
Number
Part Number S6916zz
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Bore Dia 80 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 16 mm
Width Tolerance -0.150mm to 0
Ring Material 440C Stainless Steel
Ball Material 440C Stainless Steel
Cage Material 300 Series Stainless Steel
Dynamic Radial Load 5018 lbf
Static Radial Load 4836 lbf
Max Speed (X1000 rpm) 5.1
Lubrication Required
Temperature Range -86 to 230 °F
ABEC Rating ABEC-1
Radial Clearance Trade No C0
Radial Clearance 0.01mm to 0.03mm
RoHS Compliant
REACH Compliant
Weight 382 g

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)

Design Features of S6916zz Bearing

S6916zz Bearing is a specialized type of bearing designed for situations where space constraints and weight reduction are critical factors. S6916zz bore dia is 80 mm. Its out dia is 110 mm. Its width is 16 mm. It is characterized by having a significantly smaller cross-sectional area compared to standard ball bearings.



What Benefits Can S6916zz Bearing Provide?

  • Space Efficiency: Its slim design allows for more compact and space-efficient machinery and equipment, making it ideal for applications with space constraints.
  • Load Handling: Despite its thin profile, it is capable of handling both radial and axial loads effectively, maintaining performance under various stress conditions.
  • Low Friction: Its exhibits low friction, which enhances the efficiency of machinery and extends the lifespan of both the bearing and the equipment.
  • Precision Operation: This Bearing provides high precision, crucial for applications requiring accurate and smooth motion control.



What Can S6916zz Bearing Be Used for?

S6916zz Bearing is suitable for applications such as:

  • Aerospace Industry: Used in satellite and aircraft components where space and weight are premium considerations.
  • Medical Equipment: In medical devices like scanners and MRI machines, where precision and compact design are vital.
  • Robotics and Automation: Ideal for robotics and automated machinery, where space optimization is crucial.
  • Consumer Electronics: Employed in devices like cameras and laptops, contributing to their slim and lightweight designs.
