S48LWX

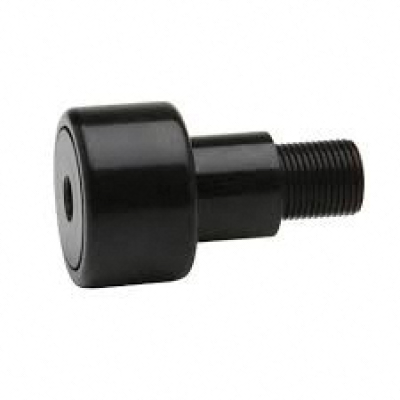

S48LWX Needle Roller Cam Followers-Standard Stud Type
Part Number S48LWX
Brand: LILY
|
Equivalent: RBC
System of Measurement Inch
For Load Direction Radial
Roller Shape Cylindrical
Internal Construction Full Complement
Type Eccentric Stud
Mounting Method Hex Hole
Seal Type Sealed
Roller Material Bearing Steel
Stud Material Bearing Steel
Roller Dia 1.5000"
Roller Width 0.875"
Stud Dia 0.875"
Stud Length 1.5"
Thread Size 5/8-18
Thread Length 0.75"
Finish Black Oxide
Speed Limit 3100 rpm
Static Radial Load 8800 lbf
Dynamic Radial Load 5000 lbf
RoHS Compliant
REACH Compliant
Weight 0.57 lb
