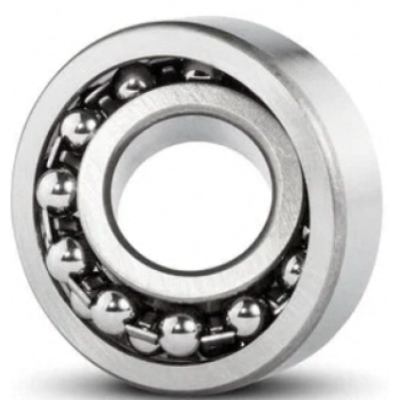

S1315
| Part Number | S1315 |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Double Row |
| Seal Type | Open |
| Bore Dia | 75 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 160 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 37 mm |
| Width Tolerance | -0.15mm to 0 |
| Shoulder Dia Of Inner Ring | 104.8 mm |
| Shoulder Dia Of Outer Ring | 135.2 mm |
| Chamfer Dimension | 2.1 mm |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 71.37 KN |
| Static Radial Load | 27 KN |
| Max Speed (X1000 rpm) | 5.04 |
| Lubrication | Lubricated |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 3.55 kg |
})
