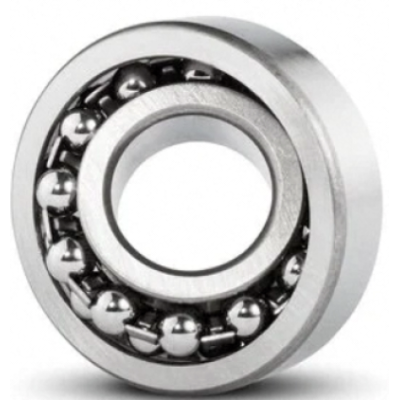

S1312 ETN9
Part Number | S1312 ETN9 |
System of Measurement | Metric |
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Double Row |
Seal Type | Open |
Bore Dia | 60 mm |
Bore Dia Tolerance | -0.015mm to 0 |
Outer Dia | 130 mm |
Outer Dia Tolerance | -0.018mm to 0 |
Width | 31 mm |
Width Tolerance | -0.15mm to 0 |
Shoulder Dia Of Inner Ring | 91.61 mm |
Shoulder Dia Of Outer Ring | 116.7 mm |
Chamfer Dimension | 2.1 mm |
Ring Material | 440C Stainless Steel |
Ball Material | 440C Stainless Steel |
Cage Material | 300 Series Stainless Steel |
Dynamic Radial Load | 52.65 KN |
Static Radial Load | 19.8 KN |
Max Speed (X1000 rpm) | 5.67 |
Lubrication | Lubricated |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 1.95 kg |
