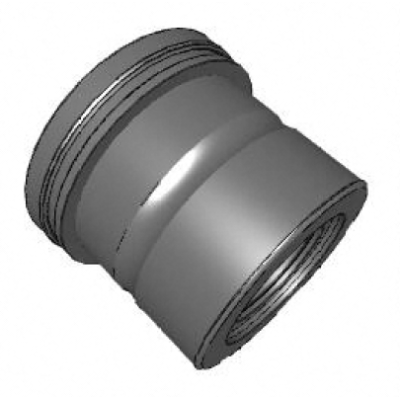

RAXN 530
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | RAXN 530 |
Brand: LILY  |
Interchangeable With: Nadella |
Characteristics |
|
| System of Measurement | Metric |
| Construction | Combined with Thrust Bearing |
Dimensions |
|
| Bore Dia | 30 mm |
| Outer Dia | 30 mm |
| Overall Width | 26 mm |
| D2(Outer Dia) | 47 mm |
Performance |
|
| Dynamic Radial Load | 20500 N |
| Static Radial Load | 34000 N |
| Axial Dynamic Load Rating | 26500 N |
| Axial Static Load Rating | 77000 N |
| Max Speed (X1000 rpm) | 6.5 |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 118 g |
