PCR-1

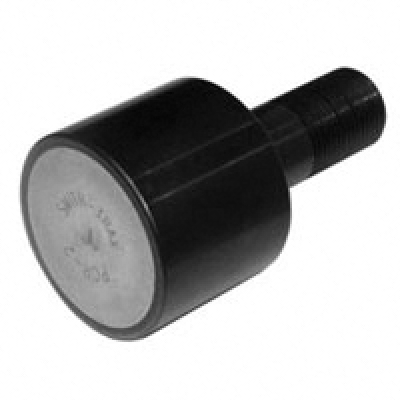

PCR-1 Stud Style Inch Track Rollers
Part Number PCR-1
Brand: LILY
|
Equivalent: SMITH
System of Measurement Inch
For Load Direction Radial
Roller Shape Cylindrical
Internal Construction Ball Bearing
Type Standard Stud
Seal Type Sealed
Series SMITH-TRAX® Bearings
Roller Material Bearing Steel
Roller Dia 1.000"
Roller Width 0.781"
Stud Dia 0.437"
Stud Length 1.000"
Threads 7/16-20
Minimum Thread Length 1/2
Shoulder Dia 0.5
Shoulder Length 0.031
Static Radial Load 230 lbs
Dynamic Radial Load 630 lbs
Bearing Type BB
RoHS Compliant
REACH Compliant
(H) Hex Size 3/16
Dynamic Thrust Load Rating (lbs)(500 hrs 33 rpm) 140
