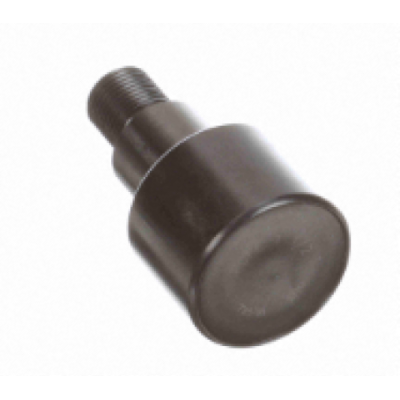

PCFE 2 3/4
| Part Number | PCFE 2 3/4 |
Brand: LILY  | |
Equivalent: McGill |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Ball Bearing |
| Type | Eccentric Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Platform | Trakrol |
| Roller Material | Bearing Steel |
| Roller Dia | 2.75" |
| Roller Width | 1.6875" |
| Stud Dia | 1" |
| Stud Length | 2.25" |
| Threads | 1-14 |
| Minimum Thread Length | 1-1/2" |
| Shoulder Dia | 1.250" |
| Shoulder Length | 0.06" |
| Bushing Dia | 1.375" |
| Bushing Length | 1.105" |
| Eccentricity | 0.03" |
| Hex Socket | 0.4375" |
| Clamping Torque | 1120 lbf |
| Max Speed | 1050 |
| Static Radial Load | 3120 lbf |
| Dynamic Radial Load | 5120 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2.97 LB |
})
