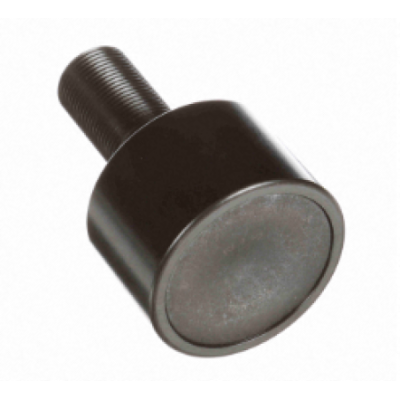

PCF 1 1/2 Cam Followers
Price Not yet
| Mcgill Part No. | PCF 1 1/2 |
| LILY Part No. | LPCF 1 1/2 |
| Cross Reference | McGill |
| System of Measurement | Inch |
| Platform | Trakrol |
| Type | Standard Stud |
| Roller Dia | 1.5" |
| Stud Roller Dia | 1.5" |
| Roller Width | 1.1875" |
| Stud Roller Width | 1.1875" |
| Roller Material | Bearing Steel, Black Oxide Finish |
| Stud Dia | 0.625" |
| Stud Length | 1.5" |
| Seal Type | Sealed |
| Dynamic Load Rating | 2520 lbf |
| Static Load Rating | 1370 lbf |
| Dynamic Radial Rating | 2520 lbf |
| Dynamic Load Rating Single Bearing | 1530 lbf |
| Dynamic Load Rating Both Bearing | 2520 lbf |
| Dynamic Thrust Rating | 1320 lbf |
| Limiting Speed | 2500 |
| Minimum Thread Length | 0.75" |
| Adjustment | None |
| Roller Shape | Cylindrical |
| Tolerance Class | P0 Equivalent |
| Hex Socket | 0.25" |
| Threads | 5/8-18 |
| Relubricatable | No |
| O D Configuration | Cylindrical |
| Stud Type | Standard Stud |
| Clamping Torquein | 325 lbf |
| Hex Slot | Hex Hole |
| Weight | 0.53 LB |
| Mounting Method | Hex Hole |
| Internal Construction | Ball Bearings |
