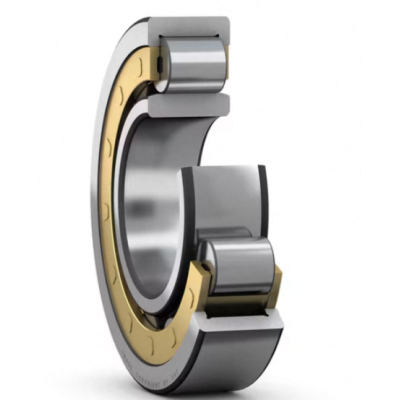

NU209
$149.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
| Part Number | NU209 |
| System of Measurement | Metric |
| Roller Bearing Type | Short Cylindrical |
| For Load Direction | Combined |
| Construction | Single Row |
| Bore Dia | 45 mm |
| Outer Dia | 55 mm |
| Width | 19 mm |
| Ring Material | Gcr15(AT) |
| Ball Material | Silicon Nitride(HIP) |
| Cage Material | Brass |
| Dynamic Radial Load | 15638 lbf |
| Static Radial Load | 14400 lbf |
| Max Speed (X1000 rpm) | 10 |
| Temperature Range | -30° to 220°C |
| Lubrication | Fluorinated Lubricants |
| Tolerance Class | P5(ABEC-5) |
| Ball Qty | 15 |
| Weight | 420 g |
