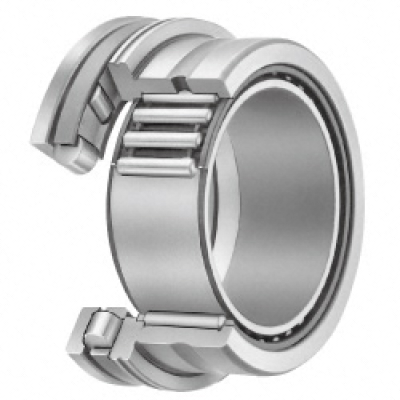

NBXI1730Z
NBXI1730Z
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | NBXI1730Z |
Brand: LILY  |
Interchangeable With: IKO |
Characteristics |
|
| System of Measurement | Metric |
| Construction | Combined with Thrust Roller Bearing |
| Seal Type | Shielded |
| Inner Ring | Yes |
| Inner Ring Type | LRT 172020 |
| Series | With Inner Ring |
Dimensions |
|
| Bore Dia | 17 mm |
| Outer Dia | 30 mm |
| Width | 10 mm |
| Overall Width | 30 mm |
| Width of Inner Ring | 20.5 mm |
| D1(Outside Diameter) | 35 mm |
| D2(Outside Diameter) | 36 mm |
| SL1(Dimension) | 10.5 mm |
| SR(rs min.) | 0.3 mm |
| SR1(rs min.) | 0.3 mm |
| SDI(Inside Diameter) | 20 mm |
| SDA(da min) | 33 mm |
| SDB(Dimension related to the installation) | 19 mm |
Material |
|
| Material | Bearing Steel |
Performance |
|
| Dynamic Radial Load | 17600 N |
| Static Radial Load | 25400 N |
| Axial Dynamic Load Rating | 19000 N |
| Axial Static Load Rating | 48700 N |
Properties |
|
| RoHS | Compliant |
| Weight | 111 g |
