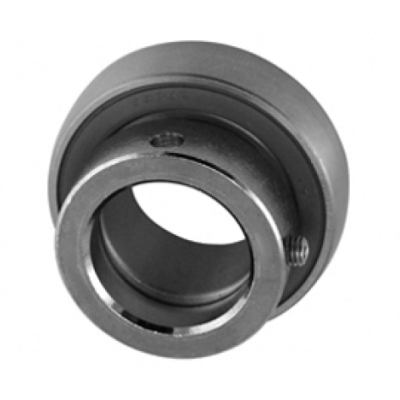

MU002
| Part Number | MU002 |
Brand: LILY  | |
Equivalent: AMI |
| System of Measurement | Metric |
| Product Series | MU000 |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Bore Dia | 15 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bearing Width | 12 mm |
| Whole Height | 22 mm |
| Whole Length | 3.5 mm |
| Bearings Material | AISI 52100 Steel |
| Dynamic Load Rating | 485 kgf |
| Static Load Rating | 230 kgf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.11 lb |
| Be | 9 mm |
| D | 32 mm |
| ds | M4x0.7 mm |
| k | 8.5 mm |
| L | 18.5 mm |
| n | 4.5 mm |
| r | 0.5 mm |
| Description | Eccentric Collar Locking_x000D_| Extra Narrow Inner Ring_x000D_| Nylon Retainer_x000D_| 440C Stainle |
})
