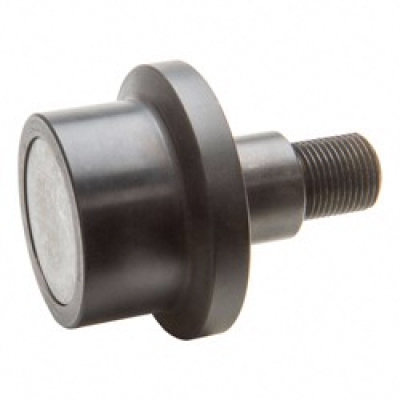

MFCR-52-E
Part Number | MFCR-52-E |
Brand: LILY | |
Equivalent: SMITH |
System of Measurement | Metric |
For Load Direction | Radial |
Roller Shape | Flanged |
Internal Construction | Tapered Roller Bearing |
Type | Eccentric Stud |
Seal Type | Sealed |
Series | SMITH-TRAX® Metric Bearings |
Roller Material | Bearing Steel |
Roller Dia | 52 mm |
Roller Width | 33.6 mm |
Stud Dia | 20 mm |
Stud Length | 40.5 mm |
Threads | M20 x 1.5 |
Shoulder Dia | 32 |
Flange Dia | 66 |
Flange Thickness | 10.8 |
Bushing (OD) | 24 |
Bushing Length | 18 |
Eccentricity | 1 |
Static Radial Load | 7200 lbs |
Dynamic Radial Load | 3825 lbs |
Bearing Type | BB |
RoHS | Compliant |
REACH | Compliant |
(B) Roller (OD) Tolerance | +0.00 -0.02 |
Dynamic Thrust Load Rating (lbs)(500 hrs 33 rpm) | 10600 |
