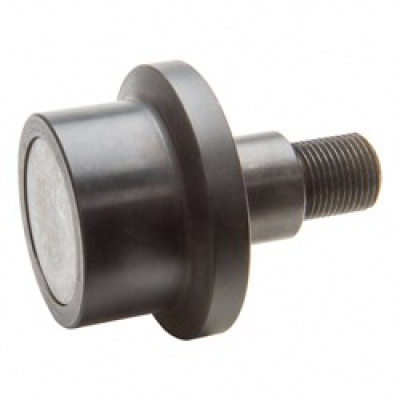

MFCR-40-E
| Part Number | MFCR-40-E |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Flanged |
| Internal Construction | Ball Bearing |
| Type | Eccentric Stud |
| Seal Type | Sealed |
| Series | SMITH-TRAX® Metric Bearings |
| Roller Material | Bearing Steel |
| Roller Dia | 40 mm |
| Roller Width | 30 mm |
| Stud Dia | 14 mm |
| Stud Length | 40 mm |
| Threads | M14 x 2 |
| Shoulder Dia | 28.5 |
| Flange Dia | 54 |
| Flange Thickness | 8.8 |
| Bushing (OD) | 22 |
| Bushing Length | 13 |
| Eccentricity | 1 |
| Static Radial Load | 4900 lbs |
| Dynamic Radial Load | 2745 lbs |
| Bearing Type | BB |
| RoHS | Compliant |
| REACH | Compliant |
| (B) Roller (OD) Tolerance | +0.00 -0.02 |
| Dynamic Thrust Load Rating (lbs)(500 hrs 33 rpm) | 7560 |
})
