MFCR-26-E

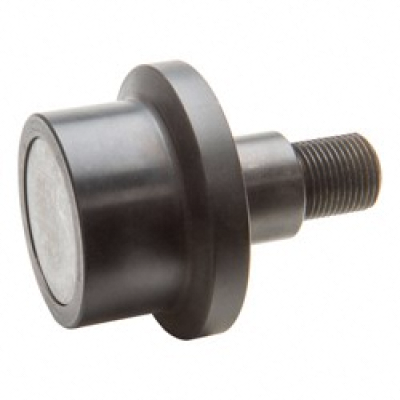

MFCR-26-E Stud Style Metric Track Rollers
Part Number MFCR-26-E
Brand: LILY
|
Equivalent: SMITH
System of Measurement Metric
For Load Direction Radial
Roller Shape Flanged
Internal Construction Ball Bearing
Type Eccentric Stud
Seal Type Sealed
Series SMITH-TRAX® Metric Bearings
Roller Material Bearing Steel
Roller Dia 26 mm
Roller Width 20 mm
Stud Dia 10 mm
Stud Length 23 mm
Threads M10 x 1
Shoulder Dia 17.1
Flange Dia 35
Flange Thickness 5
Bushing (OD) 13
Bushing Length 10
Eccentricity 0.5
Static Radial Load 1000 lbs
Dynamic Radial Load 627.75 lbs
Bearing Type BB
RoHS Compliant
REACH Compliant
(B) Roller (OD) Tolerance +0.00 -0.02
Dynamic Thrust Load Rating (lbs)(500 hrs 33 rpm) 1720
