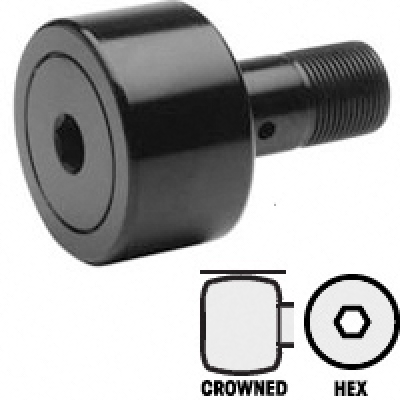

MCR-13-SB
| Part Number | MCR-13-SB |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Caged Needle Roller |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Series | Metric Stud Type Industrial cam followers |
| Roller Material | Bearing Steel |
| Roller Dia | 13 mm |
| Roller Width | 9 mm |
| Stud Dia | 5 mm |
| Stud Length | 13 mm |
| Threads | M5 x 0.8 |
| Minimum Thread Length | 7.5 |
| Shoulder Dia | 9 |
| Shoulder Length | 0.6 |
| Overall Length | 23 mm |
| Hex Socket | 3.1 |
| Lubrication Fitting Size | N/A |
| Lubrication Hole Location | N/A |
| Radius | 0.3 |
| Max Speed (rpm) | 16000 rpm |
| Static Radial Load | 517.5 lbs |
| Dynamic Radial Load | 551.25 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.02 kg |
})
