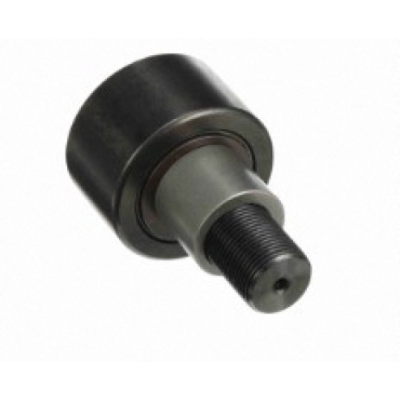

MCNBE-47-SB
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
Ships in 1-2 business days after payment, plus 3-6 business days in transit via FedEx. Tracking information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
| Part Number | MCNBE-47-SB |
Brand: LILY  |
Interchangeable With: Carter |
| System of Measurement | Metric |
| Roller Width | 24 mm |
| Stud Length | 40.5 mm |
| Bushing Length | 18 mm |
| Oil Hole Center | 9 mm |
| Oil Hole Diameter | 4 mm |
| Lube Fitting Size | 8 mm |
| Hex Size | 10 mm |
| Torque (nm) | 59 |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Full Complement |
| Type | Eccentric Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 47 mm |
| Stud Dia | 20 mm |
| Threads | M20x1.50 |
| Minimum Thread Length | 21 mm |
| Shoulder Dia | 30 mm |
| Shoulder Length | 0.8 mm |
| Bushing Dia | 24 mm |
| Eccentricity | 1 mm |
| Max Speed | 2600 rpm |
| Dynamic Radial Load | 25690 N |
| Static Radial Load | 46700 N |
| RoHS | Compliant |
| REACH | Compliant |
