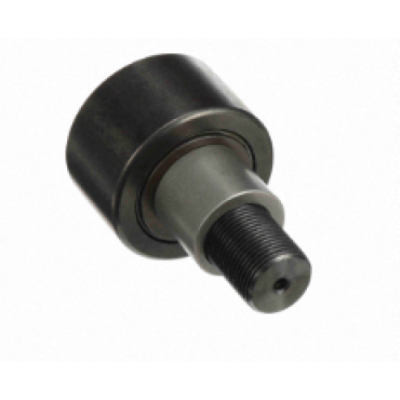

MCFRE 62 S
| Part Number | MCFRE 62 S |
Brand: LILY  | |
Equivalent: McGill |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Caged Needle Roller |
| Type | Eccentric Stud |
| Mounting Method | Screwdriver Slot |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Dia | 62 mm |
| Roller Width | 29 mm |
| Stud Dia | 24 mm |
| Stud Length | 49.5 mm |
| Threads | M24x1.5 |
| Minimum Thread Length | 25 mm |
| Shoulder Dia | 44 mm |
| Shoulder Length | 0.8 mm |
| Bushing Dia | 28 mm |
| Bushing Length | 22 mm |
| Eccentricity | 1 mm |
| Overall Length | 80 mm |
| Lubrication Fitting Size | 8 mm |
| Crown Radius | 500 mm |
| Clamping Torque | 216 nm |
| Max Speed | 3100 |
| Static Radial Load | 10408 lbf |
| Dynamic Radial Load | 7122 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.89 LB |
})
