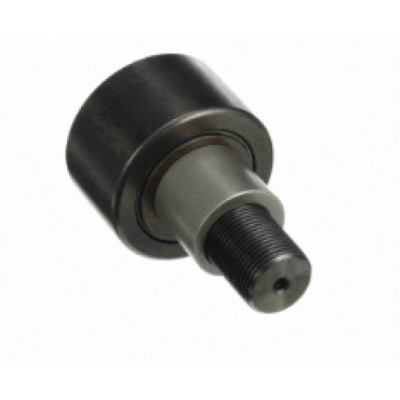

MCFRE 16
$19.11
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
| Part Number | MCFRE 16 |
Brand: LILY  |
Interchangeable With: McGill |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Caged Needle Roller |
| Type | Eccentric Stud |
| Mounting Method | Screwdriver Slot |
| Seal Type | Unsealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Dia | 16 mm |
| Roller Width | 11 mm |
| Stud Dia | 6 mm |
| Stud Length | 16 mm |
| Threads | M6X1 |
| Minimum Thread Length | 9 mm |
| Shoulder Dia | 11 mm |
| Shoulder Length | 0.6 mm |
| Bushing Dia | 9 mm |
| Bushing Length | 7 mm |
| Eccentricity | 0.5 mm |
| Overall Length | 28 mm |
| Lubrication Fitting Size | 4 mm |
| Crown Radius | 500 mm |
| Clamping Torque | 3 Nm |
| Max Speed | 19500 |
| Static Radial Load | 528 lbf |
| Dynamic Radial Load | 926 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.04 lb |
