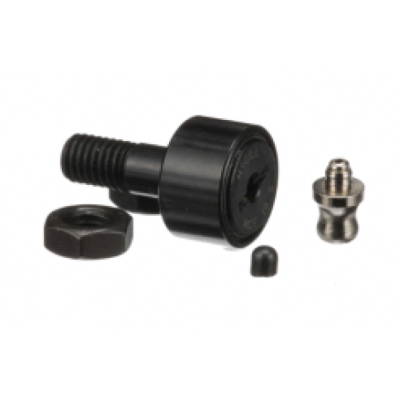

MCFR 90 BX
| Part Number | MCFR 90 BX |
Brand: LILY  | |
Equivalent: McGill |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Caged Needle Roller |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Unsealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Dia | 3.5433" |
| Roller Width | 1.378" |
| Stud Dia | 1.1811" |
| Stud Length | 63mm |
| Threads | M30x1.5 |
| Minimum Thread Length | 32 mm |
| Shoulder Dia | 68 mm |
| Shoulder Length | 1 mm |
| Hex Socket | 14 mm |
| Clamping Torque | 3903 lbs |
| Max Speed | 2200 |
| Static Radial Load | 19694 lbs |
| Dynamic Radial Load | 10495 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 5.14 LB |
})
