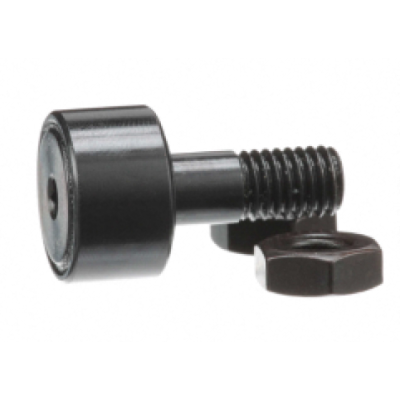

MCFR 19 SB
| Part Number | MCFR 19 SB |
Brand: LILY  | |
Equivalent: McGill |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Caged Needle Roller |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | Bearing Steel |
| Roller Dia | 19 mm |
| Roller Width | 11 mm |
| Stud Dia | 8 mm |
| Stud Length | 20 mm |
| Threads | M8x1.25 |
| Minimum Thread Length | 11 mm |
| Shoulder Dia | 13 mm |
| Shoulder Length | 0.6 mm |
| Overall Length | 32 mm |
| Hex Socket | 4 mm |
| Lubrication Fitting Size | 4 mm |
| Lubrication Hole Location | Stud side |
| Crown Radius | 500 mm |
| Clamping Torque | 8 nm |
| Max Speed | 15500 |
| Static Radial Load | 931 lbf |
| Dynamic Radial Load | 1014 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.10 LB |
})
