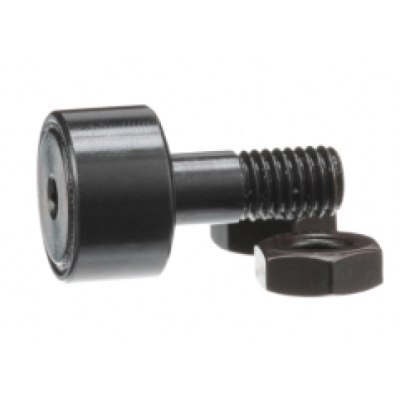

MCF 72 SBX

MCF 72 SBX Stud Type Rollers
Part Number MCF 72 SBX
Brand: LILY
|
Equivalent: McGill
System of Measurement Metric
For Load Direction Radial
Roller Shape Cylindrical
Internal Construction Full Complement
Type Standard Stud
Mounting Method Hex Hole
Seal Type Sealed
Platform Camrol
Roller Material Bearing Steel
Roller Dia 72 mm
Roller Width 29 mm
Stud Dia 24 mm
Stud Length 49.5 mm
Threads M24x1.5
Minimum Thread Length 25 mm
Shoulder Dia 63 mm
Shoulder Length 0.8 mm
Overall Length 80 mm
Hex Socket 14 mm
Lubrication Fitting Size 8 mm
Oil Hole Center 11 mm
Oil Hole Diameter 4 mm
Clamping Torque 216 nm
Max Speed 2100
Static Radial Load 14702 lbf
Dynamic Radial Load 10471 lbf
RoHS Compliant
REACH Compliant
Weight 2.51 LB
