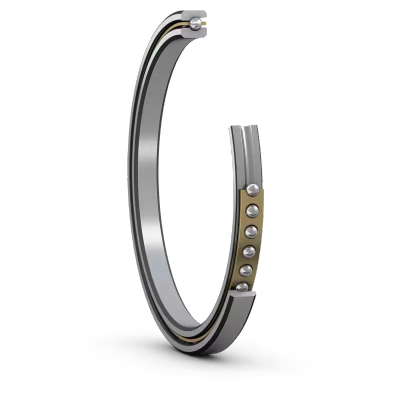

J17008XP0
Price $ 160.01
Number
Part Number | J17008XP0 |
Brand: LILY | |
Equivalent: KAYDON |
System of Measurement | Metric |
Bearing Type | Ball |
For Load Direction | Four Point Contact |
Construction | Single Row |
Seal Type | Sealed |
Thin Section Bearings Type | RealiSlim mm Metric Bearings |
Series | 8 mm |
Bore Dia | 170 mm |
Bore Dia Tolerance | -0.025mm to 0 |
Outer Dia | 186 mm |
Outer Dia Tolerance | -0.025mm to 0 |
Width | 8 mm |
Width Tolerance | +.000 –.254mm |
External Diameter On Inner Ring | 176.55 mm |
Internal Diameter On Outer Ring | 179.42 mm |
Ring Material | Chrome Steel |
Ball Material | Chrome Steel |
Cage Material | Brass |
Dynamic Radial Load | 2006 lbf |
Dynamic Thrust | 3177 lbs |
Dynamic Moment | 134 lbs |
Static Radial Load | 3895 lbf |
Static Thrust | 9740 lbs |
Static Moment | 347 lbs |
Moment Load Rating | 596 ft-lbs |
Lubrication | Lubricated |
Shaft Mount Type | Press Fit |
Temperature Range | -30°C to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | 0.0000 – 0.0005" |
RoHS | Compliant |
Weight | 0.2 Kg |
INTERCHANGE
The LILY bearing part series J17008XP0 is a potential replacement for these common bearing part numbers.
LILY
KAYDON
LJ17008XP0
J17008XP0
Design Features of J17008XP0 Bearing
J17008XP0 Bearing represents a specialized category of thin section bearings. It is distinguished by its unique cross-sectional geometry, which remains constant as the bore diameter increases. J17008XP0 bore dia is 170 mm. Its out dia is 186 mm. Its width is 8 mm. It is manufactured to high precision standards, which is critical for applications requiring accurate and smooth motion.
What Benefits Can J17008XP0 Bearing Provide?
- Space-Saving Design: The constant, slim cross-section makes this bearing ideal for compact designs where space is limited.
- Lightweight: Its design reduces material usage, thus lowering the weight, which is crucial in aerospace and other weight-sensitive applications.
- Load Handling Capabilities: Despite its thin section, this bearing can handle a significant amount of radial, axial, and moment loads, making it versatile in various mechanical setups.
- Low Friction: It maintains low friction, which enhances the overall efficiency of the applications in which it is used.
What Can J17008XP0 Bearing Be Used for?
J17008XP0 Bearing is suitable for applications such as:
- Industrial Machinery: Used in equipment where space-saving bearings are required without compromising on load capacity.
- Aerospace Industry: In components where uniform cross-sections are essential for design integrity while maintaining weight and space efficiency.
- Robotics and Automation: Its precision and compact size make it well-suited for robotic and automated machinery.
- Medical Equipment: In devices where precision and compact design are crucial, like in advanced imaging equipment.
