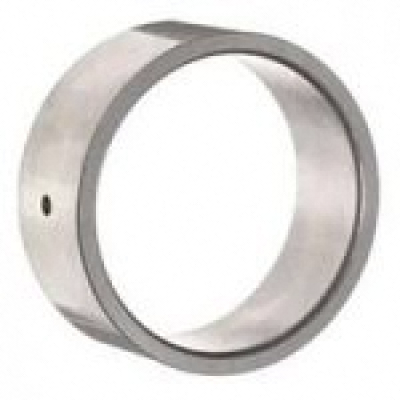

IR8X12X10-IS1-XL
Part Number | IR8X12X10-IS1-XL |
Brand: LILY | |
Equivalent: Schaeffler (INA) |
System of Measurement | Metric |
Series | IR-IS1 |
Bore Dia | 8 mm |
Bore Dia Tolerance | -0.008mm to 0 |
Outer Dia | 12 mm |
Outer Dia Tolerance | -0.018mm to -0.004mm |
Width | 10 mm |
Width Tolerance | -0.12mm to 0 |
Rmin | 0.3 mm |
Material | Bearing Steel |
Lubrication | Lubricated |
RoHS | Compliant |
Weight | 4.8 g |
Number Of Lubrication Holes | 1 |
INTERCHANGE
The LILY bearing part series IR8X12X10-IS1-XL is a potential replacement for these common bearing part numbers.
LILY
INA
IKO
FAG
LIR8X12X10-IS1-XL
IR8X12X10
LRT 81210
JR 8X12X10
