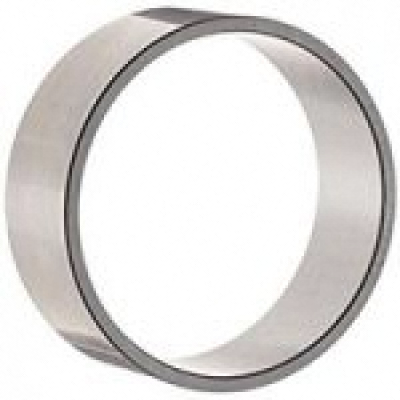

IR5X8X16-XL
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | IR5X8X16-XL |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Needle Roller |
| Series | IR |
Dimensions |
|
| Bore Dia | 5 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 8 mm |
| Outer Dia Tolerance | -0.023mm to -0.007mm |
| Width | 16 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer | 0.3 mm |
Material |
|
| Material | Chrome Steel |
Properties |
|
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight | 3.7 g |
