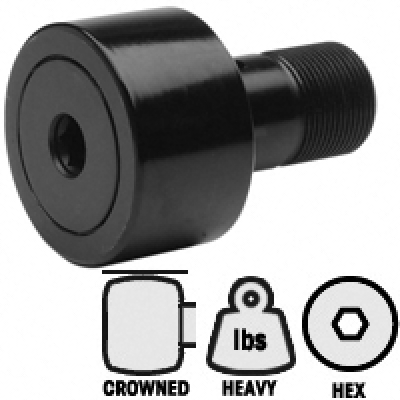

HR-1-7/8-XBC
Price $ 23.08
Number
Part Number | HR-1-7/8-XBC |
Brand: LILY | |
Equivalent: SMITH |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Crowned |
Internal Construction | Full Complement |
Type | Heavy Stud |
Mounting Method | Hex Hole |
Seal Type | Sealed |
Series | Stud Type Industrial Cam Followers |
Roller Material | Bearing Steel |
Roller Dia | 1.875" |
Roller Width | 1.000" |
Stud Dia | 1.000" |
Stud Length | 1.750" |
Threads | 1-14 |
Minimum Thread Length | 7/8 |
Shoulder Dia | 13/32 |
Hex Socket | 5/16 |
Lube Fitting Size | 3/16 |
Lubrication Fitting Size | 3/32 |
Lubrication Hole Location | 7/16 |
Crown Radius | 20 |
Clamping Torque | 2500 lbf |
Static Radial Load | 15870 lbs |
Dynamic Radial Load | 7600 lbs |
RoHS | Compliant |
REACH | Compliant |
Recom Bore | 1.0000 |
Recom Bore Tolerance | +.0005/-.0000 |
