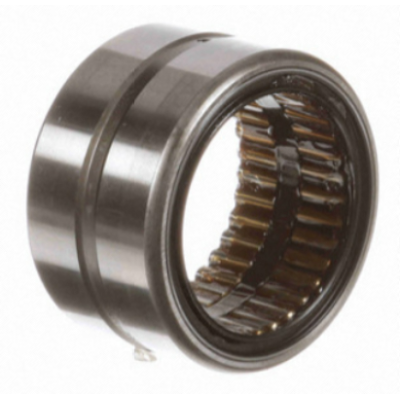

GR 68 RSS
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | GR 68 RSS |
Brand: LILY  |
Interchangeable With: McGill |
Characteristics |
|
| System of Measurement | Inch |
| Roller Bearing Type | Needle Roller |
| Seal Type | Sealed |
| For Load Direction | Radial |
| Construction | Single Row |
| Internal Construction | Full Complement |
| Inner Ring | Without Inner ring |
| Related Inner Ring | MI 58 |
| Series | Without Inner Ring |
Dimensions |
|
| Bore Dia | 4.25" |
| Outer Dia | 5.25" |
| Width | 2" |
| Outer Ring Width | 2" |
Material |
|
| Cage Material | No retainer |
| Material | Bearing Steel |
Performance |
|
| Dynamic Radial Load | 27400 lbf |
| Static Radial Load | 104000 lbf |
| Max Speed | 900 rpm |
| Operating Temperature Range (F) | -20 to 250 °F |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 3.23 lb |
| Lubrication Hole Diameter | 0.19" |
| Separable | Nonseparable |
Design Features of GR 68 RSS Bearing
GR 68 RSS Bearing features a precision-machined outer and inner race that provides a robust structure to accommodate high radial loads in heavy-duty applications. GR 68 RSS outer dia is 5.25". Its bore dia is 4.25". Its needle-shaped roller maximizes contact area while minimizing friction, allowing for high performance and efficiency, even in extreme conditions.
What Benefits Can GR 68 RSS Bearing Provide?
- High load capacity: It can handle significant radial and axial loads, making it suitable for heavy-duty applications in demanding environments.
- Compact design: The needle rollers allow for a smaller bearing size while maintaining a high load-carrying capacity, which is beneficial in space-constrained applications.
- Reduced friction: The design minimizes friction, leading to improved efficiency and performance, as well as reduced wear on the bearing surfaces.
- Enhanced durability: Its robust construction ensures longevity and reliability, even in harsh conditions, reducing maintenance needs and downtime.
- Versatility: It can be used in various applications, including industrial machinery, automotive components, and construction equipment, providing flexibility in design and implementation.
What Can GR 68 RSS Bearing Be Used for?
- Industrial machinery: It is used in equipment like conveyors, pumps, and compressors, providing reliable support for heavy loads.
- Automotive applications: Found in transmissions, differentials, and engine components, it ensures smooth operation under demanding conditions.
- Single Row equipment: It supports rotating parts in machinery like excavators, bulldozers, and cranes, where robustness is essential.
- Agricultural machinery: It is used in tractors and harvesters, providing durability and performance in challenging environments.
- Mining equipment: In heavy-duty mining machinery, it helps withstand the harsh conditions and significant loads encountered in the industry.
