Nadella Cam Followers Equivalent
/
Cam Followers
/

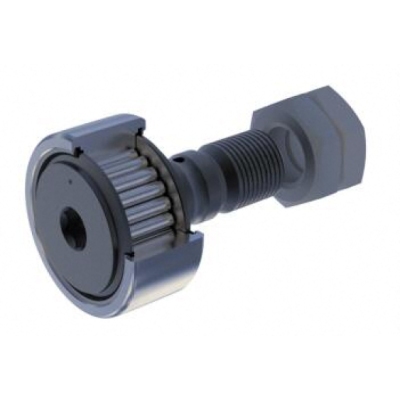

GCL..EESW - Cylindrical outer ring
/
GCL 19 EE SW
GCL 19 EE SW
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | GCL 19 EE SW |
Brand: LILY  |
Interchangeable With: Nadella |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Full Complement |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Chrome Steel |
| Roller Dia | 19 mm |
| Roller Width | 11 mm |
| Stud Dia | 8 mm |
| Stud Length | 20 mm |
| Threads | M8x1.25 |
| Minimum Thread Length | 10 mm |
| Shoulder Dia | 15.3 mm |
| Shoulder Length | 0.6 mm |
| Overall Length | 32 mm |
| Outer Chamfer | 0.3 mm |
| Hex Socket | 4 mm |
| Clamping Nuts Width | 8 mm |
| Load Coefficient | 5600 N |
| Dynamic Radial Load | 2900 N |
| Static Radial Load | 5400 N |
| Clamping Torque | 8 Nm |
| Max Speed | 4100 rpm |
| Weight | 0.039 kg |
