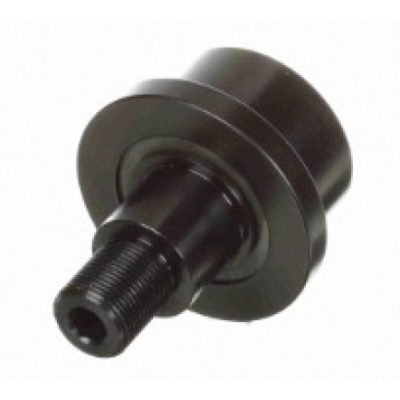

FHRE-A -Flanged High Roller Eccentric
/
FHRE-275-A
FHRE-275-A
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | FHRE-275-A |
Brand: LILY  |
Interchangeable With: Carter |
| System of Measurement | Inch |
| Roller O.d. | 2.75 |
| Flange Diameter | 3.438 |
| Flange Width | 0.594 |
| Roller Width | 1.687" |
| Stud Length | 2.25" |
| M.e.t. | 1.145 |
| Thread Class 2a | 1-14 |
| Bushing Length | 1.105" |
| Bushing Diameter | 1.375 |
| Eccentric Offset | 0.03 |
| Endplate Diameter | 1.687 |
| Endplate Stickout | 0.062 |
| Hex Size | 1/2" |
| Basic Dynamic Rating (lbf) | 5190 lbf |
| Dynamic Thrust Load (lbf) | 1400 lbf |
| Max Static Capacity (lbf) | 2270 lbf |
| Torque (ft-lb) | 25 |
| Ball(bb) Or Tapered(trb) Roller Bearing | BB |
| For Load Direction | Combined Radial and Thrust |
| Roller Shape | Flanged |
| Internal Construction | Ball Bearing |
| Type | Eccentric |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 2.75" |
| Stud Dia | 1" |
| Threads | 1-14 |
| Minimum Thread Length | 1.145" |
| Shoulder Dia | 1.687" |
| Shoulder Length | 0.062" |
| Flange Dia | 3.438" |
| Flange Thickness | 0.594" |
| Bushing Dia | 1.375" |
| Eccentricity | 0.03" |
| Dynamic Radial Load | 5190 lbf |
| Dynamic Thrust Load | 1400 lbf |
| Static Radial Load | 2270 lbf |
| RoHS | Compliant |
| REACH | Compliant |
