Nadella Cam Followers Equivalent
/
Cam Followers
/

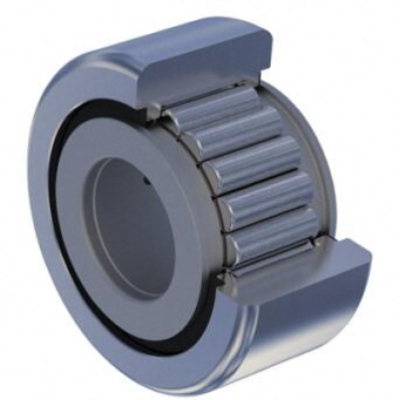

FGU.. - Crowned outer ring
/
FGU 55 120
FGU 55 120
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | FGU 55 120 |
Brand: LILY  |
Interchangeable With: Nadella |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Unsealed |
| Roller Material | Chrome Steel |
| Roller Dia | 120 mm |
| Roller Width | 34 mm |
| Yoke Bore Dia | 55 mm |
| Overall Width | 36 mm |
| Shoulder Dia | 75.8 mm |
| Outer Chamfer | 1.5 mm |
| Inner Radius | 0.6 mm |
| Crown Radius | 900 mm |
| Load Coefficient | 110000 N |
| Dynamic Radial Load | 150000 N |
| Static Radial Load | 160000 N |
| Max Speed | 730 rpm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2.27 kg |
