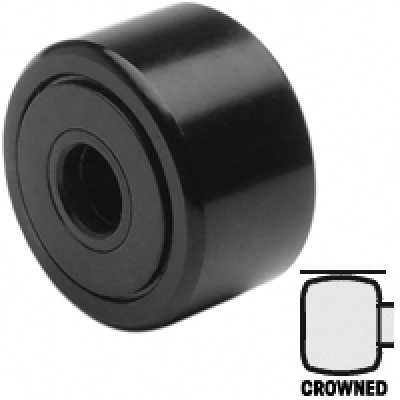

DYR-3
$98.41
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | DYR-3 |
Brand: LILY  |
Interchangeable With: SMITH |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Double Row |
| Type | Yoke Type |
| Seal Type | Shielded |
| Series | Yoke Type Industrial Cam Followers |
| Roller Material | Bearing Steel |
| Roller Dia | 3" |
| Roller Width | 1.75" |
| Yoke Bore Dia | 1" |
| Overall Width | 1.8125" |
| Shoulder Dia | 1.5" |
| Static Radial Load | 40200 lbf |
| Dynamic Radial Load | 29700 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| (B) Overall Width Tolerance | +.005/-.010 |
| (C) Roller Width Tolerance | +.000/-.005 |
| Berring Dynamic Capacity (lbs) | 29700 lbs |
| Max Allow Load (lbs) | 18800 |
| Track Capacity at 40 RC (lbs) | 13100 |
