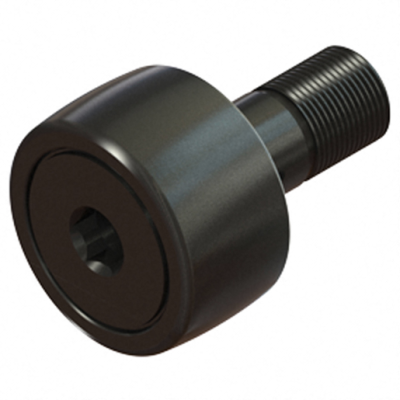

3643K66
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | DGEDKGG |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Full Complement |
| Type | Heavy Duty Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Stud Material | Bearing Steel |
| Roller Dia | 1.375" |
| Roller Width | 0.75" |
| Stud Dia | 0.75" |
| Stud Length | 1.25" |
| Thread Size | 3/4"-16 |
| Thread Length | 0.625" |
| Shoulder Dia | 0.9531" |
| Shoulder Length | 0.0625" |
| Max Speed | 2200 rpm |
| Static Radial Load | 7100 lbf |
| Dynamic Radial Load | 5300 lbf |
| Max Temp | 245 °F |
| Lubricant Type | Grease |
| Lubrication Port Location | Stud End, Stud Side |
| RoHS | RoHS Compliant |
| REACH | REACH Compliant |
