DDT-1790DSG
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | DDT-1790DSG |
Brand: LILY  |
Interchangeable With: NMB |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Washers Type | flat raceway |
| For Load Direction | Thrust |
| Seal Type | Open |
| Bore Dia | 9 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 17 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Housing Washer ID | 9.2 mm |
| Shaft Washer OD | 16.8 mm |
| Height | 5 mm |
| Height Tolerance | -0.12mm to 0 |
| Washer Material | 440C Stainless Steel |
| Ring Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Cage Material | Brass |
| Dynamic Thrust Load | 117 lbf |
| Static Thrust Load | 127 lbf |
| Max Speed (X1000 rpm) | 7.2 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 3.175 mm |
| Ball Qty | 10 |
| Weight | 5.1 g |

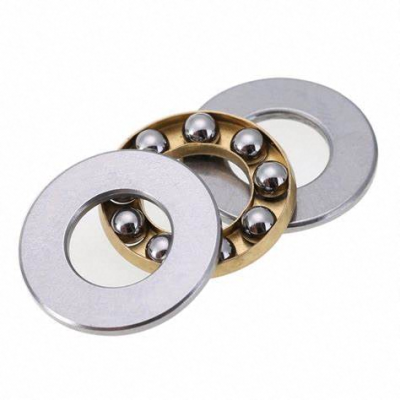

DDT-1790DSG NMB Miniature Thrust Ball Bearings are a kind of separation bearings. DDT-1790DSG bore dia is 9 mm. Its out dia is 17 mm. DDT-1790DSG ball material is Stainless Steel. Its seal type is Open. DDT-1790DSG NMB Miniature Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds.
Typical Applications
Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill roll neck, etc.
General Selection Factors
Several factors must be considered for choosing NMB Miniature Thrust Ball Bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, axial loads, and lubricant, etc.
