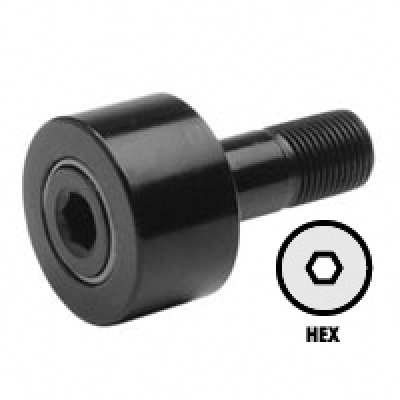

DCR-3-1/2
| Part Number | DCR-3-1/2 |
Brand: LILY  | |
Equivalent: SMITH |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Double Row |
| Type | Heavy Stud |
| Mounting Method | Hex Hole |
| Seal Type | Unsealed |
| Series | Stud Type Industrial Cam Followers |
| Roller Material | Bearing Steel |
| Roller Dia | 3.500" |
| Roller Width | 2.000" |
| Stud Dia | 1.375" |
| Stud Length | 2.750" |
| Hex Socket | 5/8 |
| Static Radial Load | 49,500 lbs |
| Dynamic Radial Load | 37000 lbs |
| RoHS | Compliant |
| REACH | Compliant |
| (C) Roller Width Tolerance | +.000/-.005 |
| (G) Thread (UNF) Class 2A | 1-3/8-12 |
| (G1) Eff Thread Min | 1.375 |
| Berring Dynamic Capacity (lbs) | 37,000 |
| Max Allow Load (lbs) | 21,000 |
| Max Clamp Torque (lbs-ft) | 208 |
| Track Capacity at 40 RC (lbs) | 17,000 |
})
