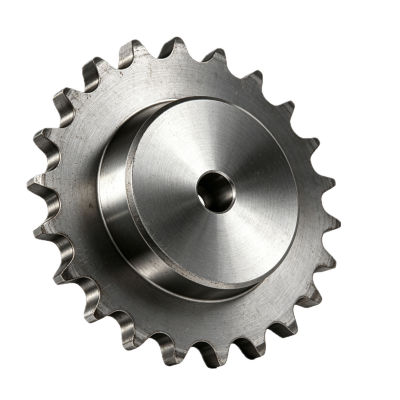

D50SF52
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | D50SF52 |
Brand: LILY  |
Interchangeable With: Martin |
Characteristics |
|
| System of Measurement | Inch |
| Number Of Teeth | 52 |
| For Roller Chain Trade Size | 50-2 |
| Type | C |
| Bushing Size | SF |
Dimensions |
|
| OD | 10.71" |
| Pitch Diameter | 10.351" |
| Bore Max | 2.406" |
| Chain Pitch | 0.625" |
| Dimensions C | 4.625" |
| Dimensions W | 1.045" |
| Dimensions L1 | 2.25" |
| Dimensions L2 | 2.25" |
| Dimensions Y | 0.75" |
| Dimensions X | 1.25" |
| Dimensions T | 0.332" |
| Dimensions P | 13/64" |
Material |
|
| Material | Steel |
Properties |
|
| WT.lb(APPROX) With Hub | 24.26 lbs |
| WT.lb(APPROX) Rim Only | 21.26 lbs |
Design Features of D50SF52 Sprockets
D50SF52 are heavy-duty sprockets designed for ANSI No. 50 roller chains, providing strong, reliable power transmission for moderate to high-load applications. They feature teeth spaced at 5/8-inch intervals to ensure accurate chain engagement and smooth operation under demanding conditions. Manufactured primarily from heat-treated steel or stainless steel, these sprockets offer excellent wear resistance and durability. Available in various tooth counts and bore configurations—including plain bore, finished bore, and taper-lock options—they provide flexible mounting solutions suitable for industrial machinery, agricultural equipment, and material handling systems requiring robust chain drives.
What Benefits Can D50SF52 Sprockets Provide?
- High Load Capacity – Designed to handle moderate to heavy loads in demanding industrial applications.
- Precise Chain Engagement – Accurate tooth spacing reduces wear and ensures smooth, efficient power transmission.
- Durable Construction – Made from heat-treated steel or stainless steel to resist wear, corrosion, and fatigue.
- Versatile Mounting Options – Available in plain bore, finished bore, and taper-lock designs for flexible installation.
What Can D50SF52 Sprockets Be Used for?
- Heavy Industrial Machinery – Powers conveyors, crushers, and mixers in manufacturing and processing plants.
- Agricultural Equipment – Used in tractors, harvesters, and other farm machinery requiring durable chain drives.
- Steel Handling Systems – Suitable for pallet conveyors, automated sorting, and warehouse equipment handling moderate to heavy loads.
- Construction Equipment – Drives power transmission in loaders, excavators, and other rugged machines.
- Mining and Quarrying – Applied in conveyor systems and machinery exposed to abrasive and harsh conditions.
- Automotive and Assembly Lines – Supports production equipment requiring reliable and consistent power transmission under moderate to heavy loads.
