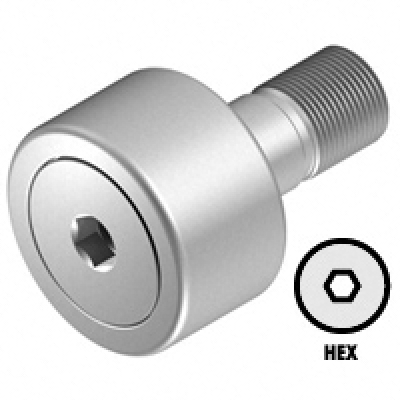

CR-7/8-XB-SS
Part Number | CR-7/8-XB-SS |
Brand: LILY | |
Equivalent: SMITH |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Cylindrical |
Internal Construction | Full Complement |
Type | Standard Stud |
Mounting Method | Hex Hole |
Seal Type | Sealed |
Series | Stud Type Industrial Cam Followers |
Roller Material | 440C Stainless Steel |
Roller Dia | 0.875" |
Roller Width | 0.500" |
Stud Dia | 0.375" |
Stud Length | 0.875" |
Threads | 3/8-24 |
Minimum Thread Length | 3/8 |
Shoulder Dia | 1/2 |
Hex Socket | 3/16 |
Lube Fitting Size | 3/16 |
Lubrication Fitting Size | 3/32 |
Lubrication Hole Location | 1/4 |
Dynamic Radial Load | 1245 lbs |
RoHS | Compliant |
REACH | Compliant |
Recom Bore | .375 |
Recom Bore Tolerance | +.0005/-.0000 |
