CH20LW
$10.61
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY

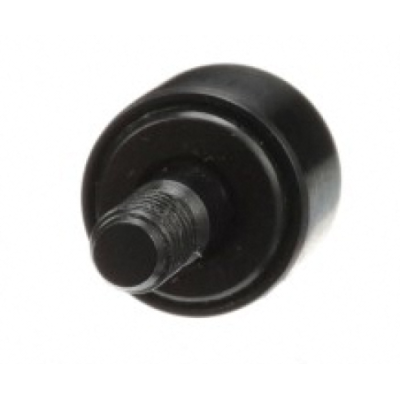

| Part Number | CH20LW |
Brand: LILY  |
Interchangeable With: RBC |
| System of Measurement | Inch |
| axial dynamic load rating | 970 lbf |
| axial static load rating | 2500 lbf |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Full Complement |
| Type | Heavy Duty Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Stud Material | Bearing Steel |
| Roller Dia | 0.625" |
| Roller Width | 0.438" |
| Stud Dia | 0.3125" |
| Stud Length | 0.75" |
| Thread Size | 5/16-24 |
| Thread Length | 0.312" |
| Finish | Black Oxide |
| Speed Limit | 5000 rpm |
| Static Radial Load | 1200 lbf |
| Dynamic Radial Load | 770 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.06 lb |
