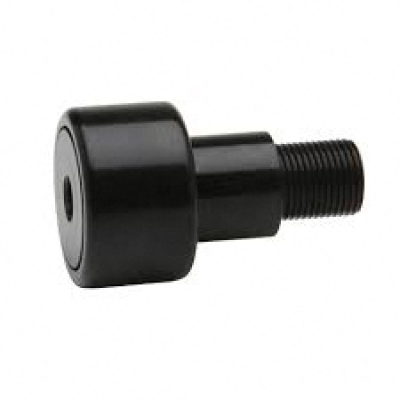

CFE 1 1/2 SB

CFE 1 1/2 SB Stud Type Rollers
Price $ 14.31
Number
Part Number CFE 1 1/2 SB
Brand: LILY
|
Equivalent: McGill
System of Measurement Inch
For Load Direction Radial
Roller Shape Cylindrical
Internal Construction Full Complement
Type Eccentric Stud
Mounting Method Hex Hole
Seal Type Sealed
Platform Camrol
Roller Material Bearing Steel
Roller Dia 1.5"
Roller Width 0.875"
Stud Dia 0.625"
Stud Length 1.5"
Threads 5/8-18
Minimum Thread Length 0.75"
Shoulder Dia 1.09"
Shoulder Length 0.03"
Bushing Dia 0.875"
Bushing Length 0.75"
Eccentricity 0.03"
Hex Socket 0.3125"
Lubrication Fitting Size 0.1875"
Clamping Torque 650 lbf
Max Speed 2500
Static Radial Load 4000 lbf
Dynamic Radial Load 4840 lbf
RoHS Compliant
REACH Compliant
Weight 0.55 LB
