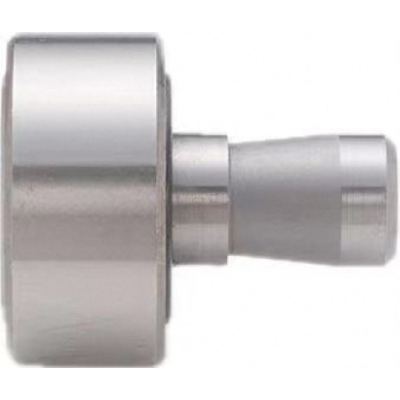

CF-SFU-20
Part Number | CF-SFU-20 |
System of Measurement | Metric |
For Load Direction | Radial |
Roller Shape | Cylindrical |
Internal Construction | Caged Needle Roller |
Type | Easy Mounting Stud |
Mounting Method | Screwdriver Slot |
Seal Type | Sealed |
Roller Material | Bearing Steel |
Roller Dia | 52 mm |
Roller Width | 24 mm |
Stud Dia | 20 mm |
Stud Length | 24.9 mm |
Shoulder Dia | 34 mm |
Shoulder Length | 0.8 mm |
Overall Length | 50.5 mm |
Eccentricity | 1 mm |
rs min SR (mm) | 1 mm |
Stud Shoulder Length | 10 mm |
Stud Step Length | 10 mm |
Static Radial Load | 34600 N |
Dynamic Radial Load | 20700 N |
RoHS | Compliant |
REACH | Compliant |
Mass (g) | 435 g |
