High Temperature Bearings
/

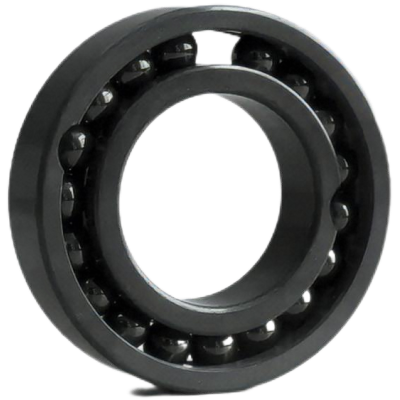

Silicon Nitride MAX 800°C (1472°F)
/
CESI 6417
CESI 6417
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | CESI 6417 |
| Cage Material |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Bore Dia | 85 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 210 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width | 52 mm |
| Width Tolerance | -0.200mm to 0 |
| Ring Material | Silicon Nitride |
| Ball Material | Silicon Nitride |
| Dynamic Radial Load(Cr) | 19558 lbf |
| Static Radial Load(C0r) | 15400 lbf |
| Max Speed (X1000 rpm) | 0.256 |
| Lubrication | without |
| Maximum Temperature | 1472 °F |
| Shaft Mount Type | Press Fit |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No | C0 |
| Radial Clearance | 0.012mm to 0.036mm |
| RoHS | Compliant |
| Weight | 3800.00 g |
